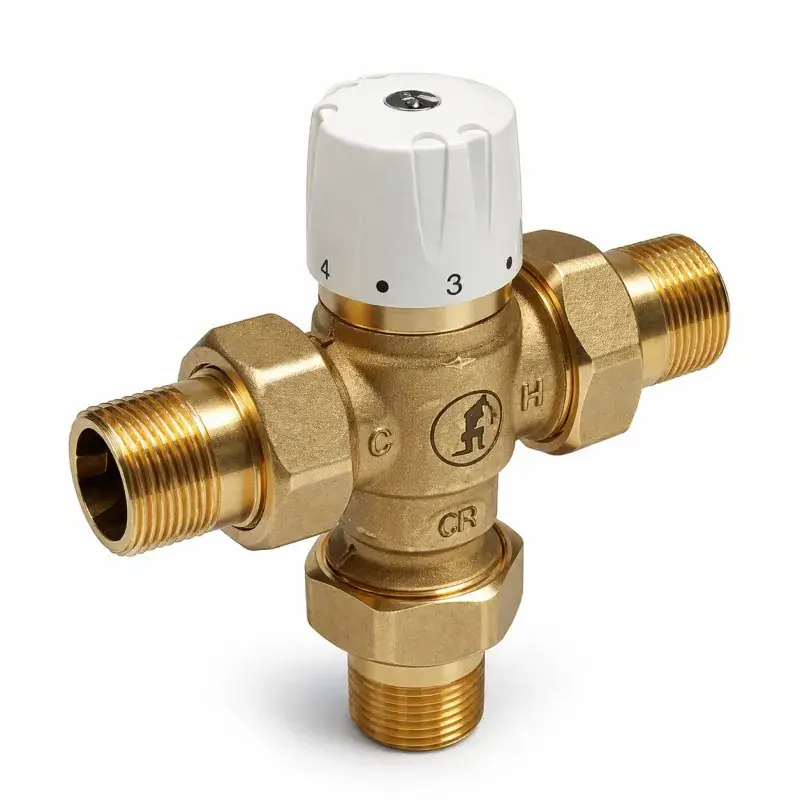

Ultimissimo Modello Thermostatic mixer tail pieces male connections Giacomini R156-2

Thermostatic mixer tail pieces male connections Giacomini R156-2

The R156-2 thermostatic mixer is installed on household domestic systems in order to achieve energy savings, greater comfort in the use of hot water, elimination of risks of skin burns caused by excessive operating temperatures. For this reason the thermostatic mixer is equipped with a thermal shutdown function in case of failure of the cold water supply. It can be used in boiler room at domestic hot water risers in the immediate vicinity of boilers or water tanks, or in distribution cabinets in case of domestic water systems supplied by manifolds.

Product :

Brand: Giacomini S.p.a

Thermostatic mixer for use in domestic water systems, brass finish, tail pieces male connections.

With anti-scalding function.

Temperature range: 30÷65 °C.

Maximum working pressure (static): 10 barMaximum working pressure (dynamic): 5 barTemperature range: 30÷65 °CMaximum inlet temperature (hot water): 85 °CAccuracy: ± 2 °CMaximum inlet pressure ratio (H/C or C/H): 2:1Minimum temperature difference between hot water inlet and mixed water outlet to ensure the thermal closure function: 15 °CMinimum flow rate for stable operation: 9 l/min (1/2″, 3/4″); 15 l/min (1″, 1 1/4″); 40 l/min (1 1/2″, 2″)
