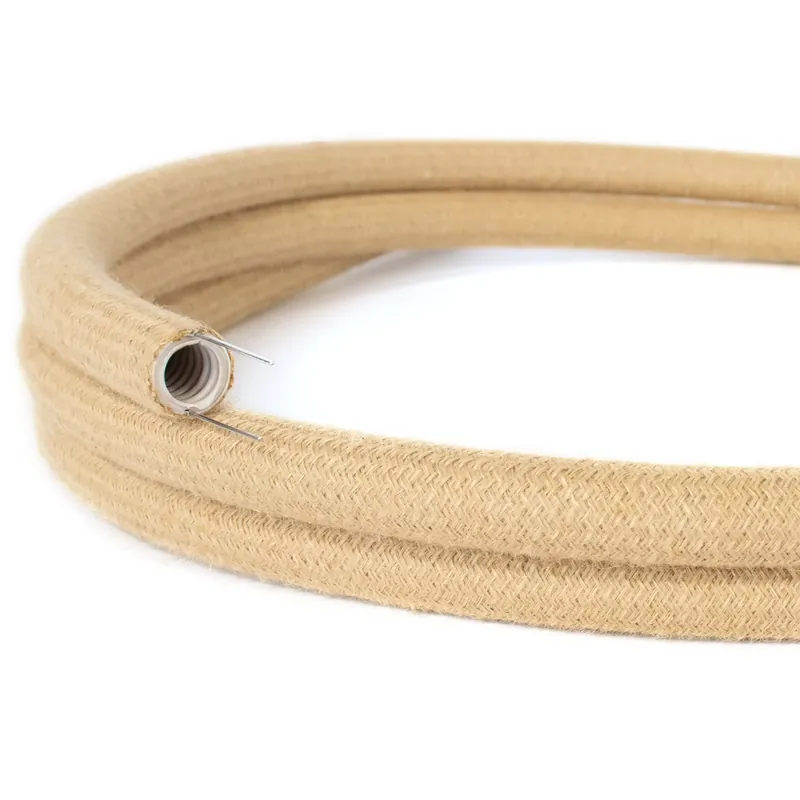

Offerta Del Giorno Creative-Tube flexible conduit, Rayon Jute RN06 fabric covering, 20 mm diameter

Creative-Tube is much more than just a fabric-covered conduit!
Thanks to the metal filaments that run throughout its entire length, Creative-Tube can take on and hold any shape you give it. The only limit to Creative-Tube applications and uses will be your imagination!

The 20 mm Rayon Jute fabric-covered Creative-Tube eliminates those ugly plastic conduits and rigid metal pipes running across the walls of your workplace or studio, giving you the freedom to draw on your walls and ceilings with the color and design you want. Thanks to the range of unique accessories developed by Creative-Cables, you can: – connect Creative-Tubes to junction boxes; – directly connect the ceiling canopies of your wall or ceiling lamps; – create a complete electrical system with sockets and switches youll be proud to display instead of hiding in the walls!

You can use Creative-Tubes on exterior walls. Their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321 and is IMQ certified.

Creative-Tube is sold by the meter; multiple meters will be delivered in a single continuous length up to a maximum of 50 meters.

Cant find the Creative-Tube color you want? Contact us: we can make it for you!

Technical specifications:

Classification No: 3321
Crushing resistance:>750N on 5 cm at 20°C
Shock resistance: (-15°C) after applying 2 kg mass hammer
Operating temperature: -5°C to +60°C
Resistance to flame propagation: self-extinguishing VO
Dielectric strength: <2000V at 50Hz
Insulation resistance:>100 mega ohm
Diameter: 20 mm
Color: Rayon Jute RN06

According to the CEI 64-8 standard, to ensure cable removal, the maximum usable cross-section of cables inside the Creative-Tube is 10 mm for a Tube up to 10 metres long. For lengths up to 20 metres, the maximum thickness is 9 mm.

Due to the shape of Creative-Tube, once its in place youll need to cut off the metal filaments that protrude beyond the edge of the tube before installing the accessories or connecting it to the junction box.

Creative-Tube is sold by the foot.
