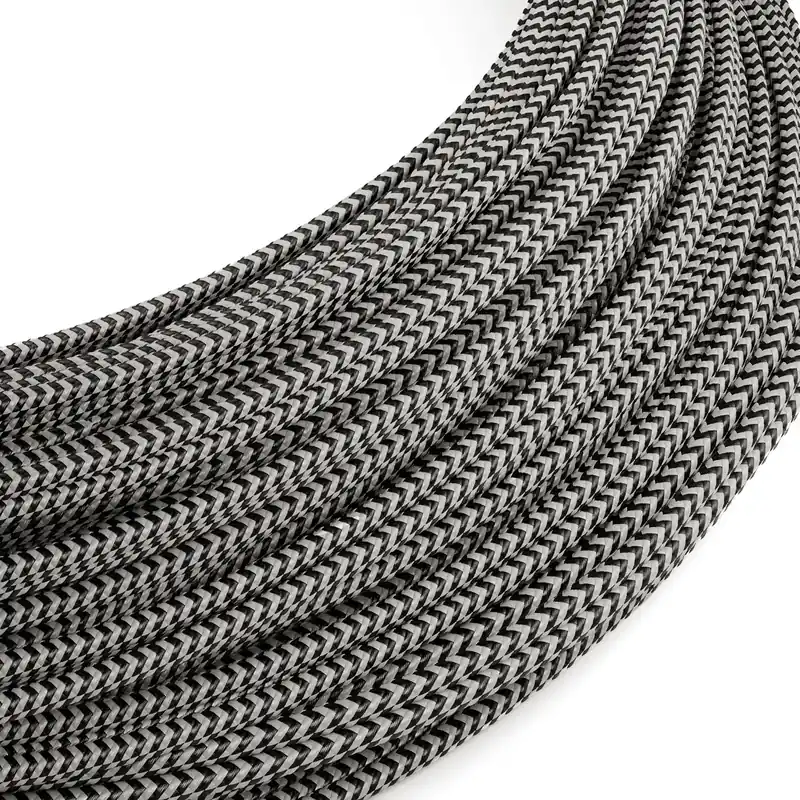

Extra Low Voltage power cable coated in silk-effect fabric ZigZag Black and White RZ04 Affare

The two-pin extra-low-voltage electrical cable in extra-flexible white silicone is covered in ZigZag Black White RZ04 silk-effect fabric. The cable is 3.5 mm in diameter (approximately 4 mm with covering) and has 2 copper conductors insulated in black and red silicone rubber with a cross-section of 0.35 mm².

The size and structure of the cable make it suitable for LED applications with a voltage of less than 48 V. The cable is ideal for movable luminaires (table / floor lamps) in class III and for fixed installations (wall, ceiling and pendant lamps) in class II with a rated current of no more than 2 A.

WARNING DO NOT USE FOR MAINS VOLTAGE – DO NOT USE FOR HALOGEN LAMPS

Technical specifications:

Flexible bipolar cable insulated with white silicone
Outer diameter 3.8 mm
2 copper conductors coated with black and red rubber, 0.35 mm section
Rated voltage 300/500 V
Test voltage 2 kV
IEC EN 60228 Class 5
IEC EN 60754-1/2

The cable is sold by the foot.
