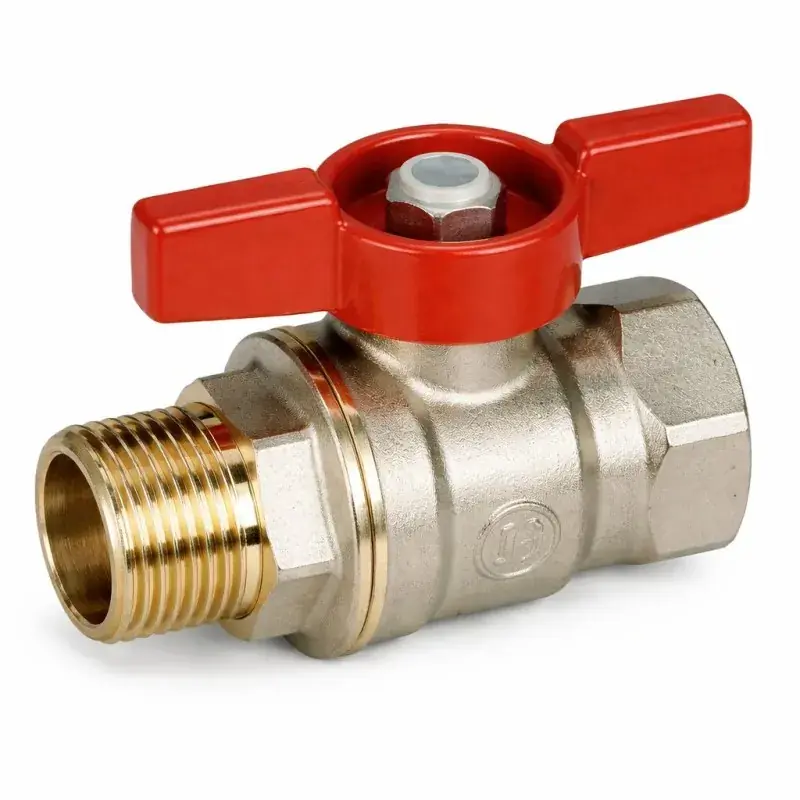

DADO ball valve, female-male connections Giacomini R914 Economico

DADO ball valve, female-male connections Giacomini R914

DADO ball valve, with female-male threaded connections. Suitable for water for heating/cooling systems, not dangerous gas and liquid hydrocarbons. Valve made of UNI EN 12165 CW617N nickel plated brass. Full port. Aluminium T-handle, red painted. Stem with double O-Ring. Nut with anti-corrosion coating, with guarantee seal and hologram. Min. working temperature: -20 °C with 50 % glycol solutions. Max. working temperature with dry saturated steam: 185 °C with 1,05 MPa (10,5 bar). Max. working pressure at 20 °C with water and not dangerous gas: 4,2 MPa (42 bar) for 1/4, 3/8, 1/2, 3/4; 3,5 MPa (35 bar) for 1, 1-1/4. Temperature range with liquid hydrocarbons: -20÷60 °C. Max. working pressure at 20 °C with liquid hydrocarbons: 1,2 MPa (12 bar).

Product :

brand: GIacomini S.P.A

DADO ball valve, with female-male threaded connections.

Nickel plated brass finishing.

Full port. Red T-handle (water use).
