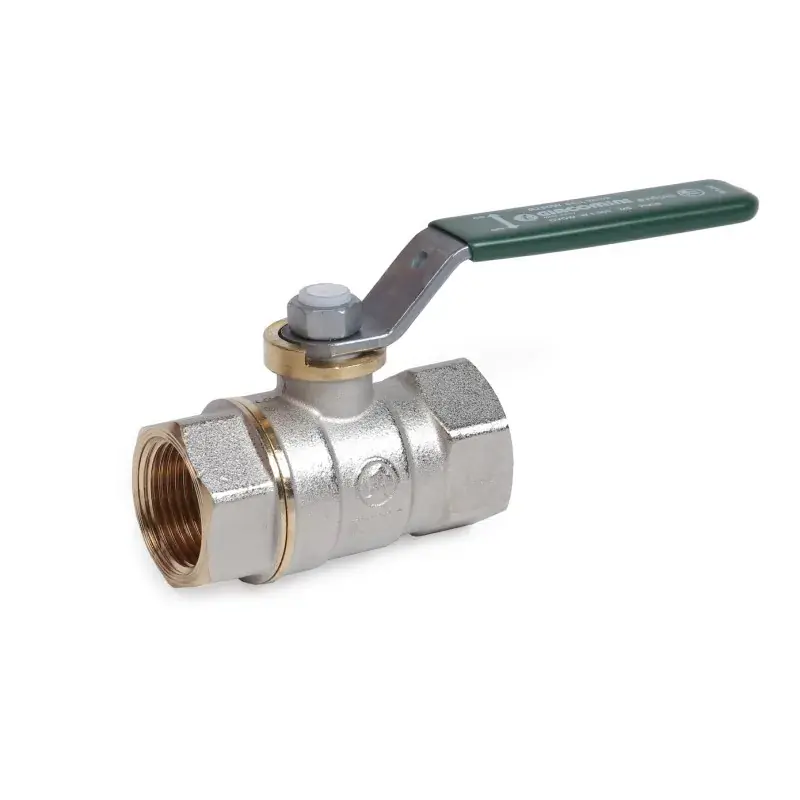

Compra Adesso Ball valve female-female connections Giacomini R250W

Ball valve, F-F connections, lever handle, Giacomini R250W standard passage

Ball valve with female-female connections. Specific for sanitary water. In chromed brass UNI EN 12165 CW617N. Standard passage. Lever handle in steel with anti-corrosion treatment and green PVC coating. Control rod with double sealing O-Ring. Nut with anti-corrosion coating, guarantee seal and hologram. Temperature range: 5 ÷ 120 ° C. Maximum operating pressure at 20 ° C with water and non-hazardous gases: 4.2 MPa (42 bar) for 3/8 “, 1/2”, 3/4 “; 3.5 MPa (35 bar) for 1 “, 1-1 / 4”, 1-1 / 2 “, 2”.

Product :

Brand: Giacomini Water E-Motion

Ball valve, in nickel-plated brass, with female-female connections.

Green lever handle.

Standard passage.

For plumbing systems, specific for sanitary water.

Temperature range 5 ÷ 120 ° C.

Technical Communication 0589IT

NOTE:

Check the actual applications and certifications of the valve by consulting the specific Technical Data Sheet.
