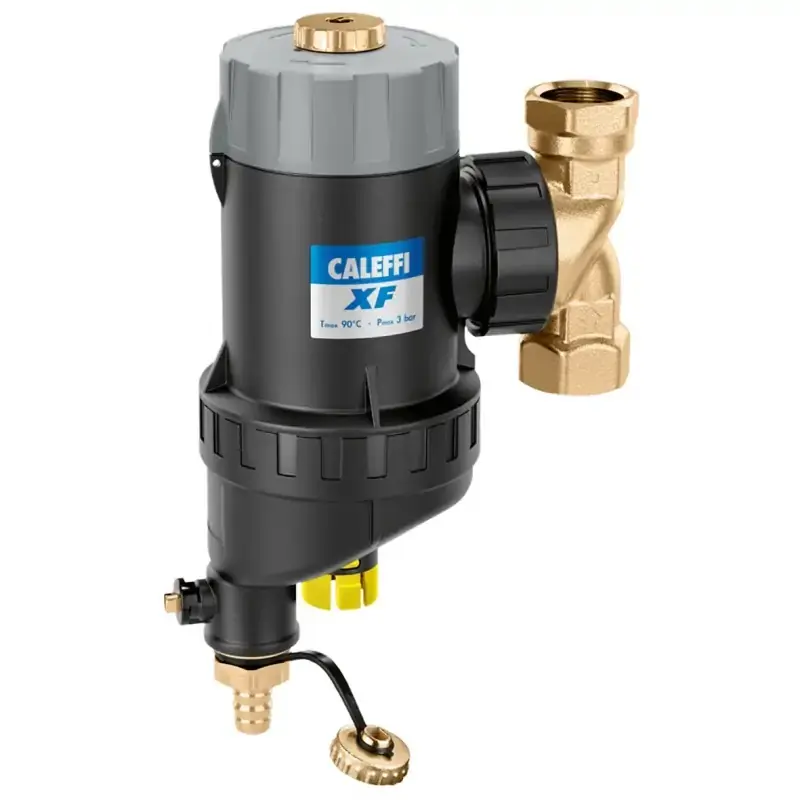

CALEFFI XF – Semi-automatic self-cleaning magnetic filter 577

The CALEFFI XF filter separates impurities in the system right from the first passage. Its large filtration surface and impurity separation upstream of the filter also minimises the problem of mesh clogging. System water is treated in three distinct steps: an initial separation mesh, a central magnet and an outlet filter. CALEFFI XF continuously protects the generator and devices from any impurities that form in the hydraulic circuit. It can be adjusted for horizontal or vertical installation. Internal cleaning brushes mean that maintenance can be carried out without shutting off the device.

Product :

Semi-automatic self-cleaning magnetic filter.

Technopolymer body.

Female connections and compression

end.

Adjustable for horizontal and vertical

pipes.

Drain cock with hose connection.

Max. working pressure: 3 bar.

Temperature range: 090 °C.

Strainer mesh size Ø = 0,16 mm.
