Affare Cartridge for taps raf danubio X262

Replacement cartridge for RAF X262 taps

this cartridge is compatible for RAF series Taps from 40/45 years ago x CASCADE-DANUBIO series (old type) GANGE-HAVEL-MISSISIPI-MISSOURI-INDO-INOX-MOLDAVA-RENO-RUSCELLO-RIO PLATA-RODANO-ORTAMIX-KINO- SENNA-TAGO-CONGO (external basin excluded)

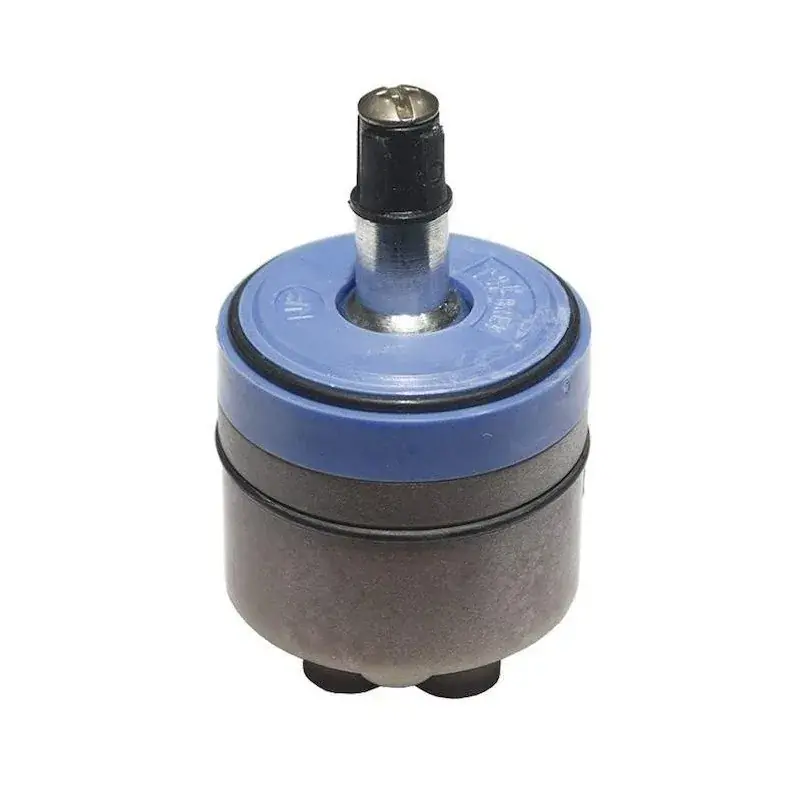

Original RAF Rubinetteria X262 cartridge

Handle graft with square pvc star (4 lobes) joint

Measurements: Total height from the stem mm65

diameter 45mm brown body blue lid

ATTENTION

The old RAF X262 cartridges could also be of different single cream color or two-tone cream with blue lid

to assemble it, the water from the counter or from the under-basin taps, then it is necessary to lever the lid on the lever itself, there is a screw below, unscrew the same then remove the lever, unscrew the cartridge holder at the bottom, extract the old cartridge thoroughly clean the inside of the tap and insert the new one.

pay attention in the 1970s some examples were produced by the RAF company where the lever instead of lifting it on the contrary is lowered therefore the cartridge for this type of Danubio series model requires the inverted cartridge X265
